Monitoring and control system ENTEL



Description

Monitoring and control system (MACS) ENTEL is universal programmable logic controller (PLC) with unique software developed by engineers of ENTEL based on the Linux OS. The controller is designed for industrial automation.



Application area

- Automation in the framework of products of ENTEL company (UPS unit, MCC, Shur, etc.);

- Auxiliary power supply systems of medical institutions;

- Automation systems of oil and gas pumping stations;

- Auxiliary systems of power plants and substations;

- Telecommunications systems;

- Automation of production;

- Chemical industry;

- Automation of transport;

- Smart home;



Visual image of processes

MACS ENTEL sells user-friendly HMI (man-machine interface), which will deal any dedicated expert. HMI is designed for illustrative visualization of process parameters (object) and/or operator control.

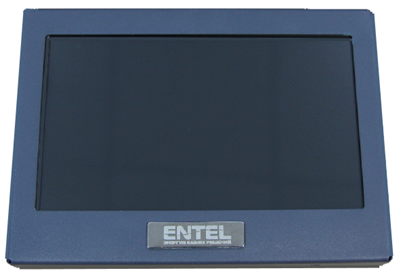

Touch Operator Panel



Functions:

- data exchange with the devices;
- Information processing in real time;
- Logic Control;
- Display of information;
- Maintenance of real time data;
- Alarm system.

Benefits

- Productivity;
- Use in the systems of different levels;
- Remote monitoring;
- Communications.



Remote monitoring and control (WEB)

MACS ENTEL allows using fully all services remotely. The degree of remove depends on your security policy (including the PLC to the Internet or a local network). At the same time the main advantage of remote system MACS ENTEL is no need to install additional software. Any modern browser can be used (even in the phone).

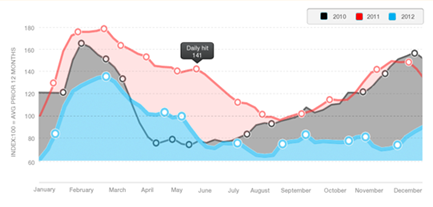

Trends, oscillograms, event logs

The large volume of non-volatile memory, accurate real-time clock built into MACS ENTEL, allows to keep data archive for a long time, and the powerful processor together with progressive video accelerator enable to display the data as trends, oscillograms, event logs, and archives of accidents. Now, all important data will be available for convenient posttest analysis.

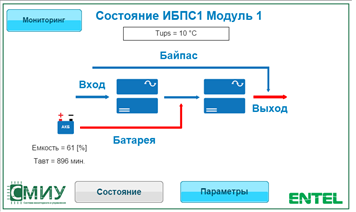

HMI or visual image of the production processes

The time, when several highly qualified specialist was required for maintaining of large systems, has gone. MACS ENTEL sells user-friendly HMI (man-machine interface), which will deal any dedicated expert. HMI is designed for illustrative visualization of process parameters (object) and/or operator control.

Built-in communications interfaces

MACS ENTEL has a large number of communications interfaces, namely: 2 RS-485 port, 1-port 1-Wire, 1 Ethernet port, 2 USB ports, 12 digital inputs, 2 outputs of "dry contact" type. All ports have galvanic isolation.

With their help you can organize:

  • Survey of detecting devices, meters, sensors and other electronic devices;
  • control of executive devices and mechanisms;

You can control equipment operation practices connecting the external temperature sensors, humidity sensors, etc.

Technical specifications

Parameter name

Value

Supply voltage

DC 18-36V (24V rated)

Power consumption

10W without panel, 30W with the panel

Оperating system

Debian Linux 7.0

Supported protocols

Modbus RTU/ASCII, Modbus TCP, EtherCat, ProfiNet IO, JBus, MQTT, HTTP, SFTP, SCP

Central data processing system

Number of cores: 4

Core frequency: 900MHz

Video accelerator

Broadcom VideoCore IV 250 MHz

Random access memory

1GB SDRAM

ROM

From 8GB to 128GB

Ports

Ethernet 10/100, 2 x USB2.0, 2 x RS-485, 1-Wire

Digital inputs

12

Digital outputs

2 "dry contact" types

Galvanic isolation

2.5kV

Data storage

Relational database system SQLite

Operation conditions

-20°C..60°C

Screen

Resolution: 800x480px

Sensor: Capacitive
