Automatic remote control cabinet ARCC



Description

ARCC is a programmable, intelligent device and is used as a telemechanic equipment in assembly with automated dispatch control system of energy sector.

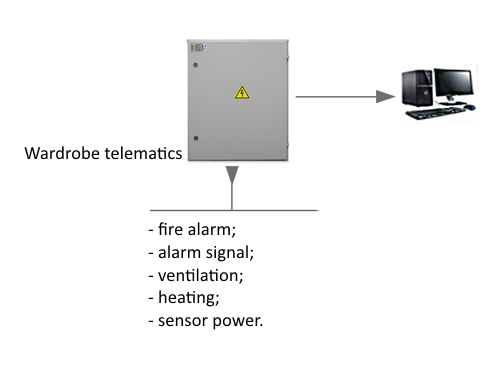

ARCC is designed for collection, processing and transmission of information on functioning of basic and supporting equipment of electricity generation facility for generation of telemechanics system and transmission of information to the upper level via telemechanics protocol.



Application area

Metering systems for power resources and telemechanics of electricity generation facilities, industrial enterprises, major shopping centers.



Functions

- Measurement and transmission of parameters of the current operation mode of power facilities (PF);

- Registration and transition of the state of supervisory indication signal (SIS);

- Reception and execution of telecontrol commands (TC) with the implementation of algorithms for operation and process interlocks;

- Execution of automatic control algorithms (ATS, automatic recloser, etc.);

- Performing functions of emergency events recorder (EER) (optional);

- Performing functions of time server (optional)

- Recording of data archive to non-volatile memory;

- The ability to copy data to a removable media (optional).



Certificates

Complies with TR CU 004/2011 "On safety of low voltage equipment" approved by the decision of Customs Union Commission №768of 16.08.2011, TR CU 020/2011«Electromagnetic compatibility of technical means" approved by the decision of Customs Union Commission №879 of 09.12.2011



Technical specifications

Number of PF signals

up to 1024

Number of SIS signals

up to 288

Number of TC signals

up to 96

cycle of polling and data transfer via PF channels

1 s

Measurement error

At least 0,5%

Accuracy of time label binding

At least 1 ms

Internal non-volatile memory capacity

from 80 Gb

Detachable non-volatile memory capacity

up to 2 Gb

Design – rack cabinet

IP54

Power supply, two inputs

=220V or ~220 V
