Batteries protection cabinet (BPC)



Description

Accumulator battery protection cabinet (BPC) is designed to protect the battery (ACB) against the short-circuit currents in the DC circuit (including cases of deep discharge of ACB). BPC provides protection by breaking the DC circuit if the current in it exceeds the permissible level.



Functions

- power shifting;

- Manual emergency shutdown;

- The ability to be installed in a 19" rack;

- Status control of fuses 1.

1 is installed optional



Application area

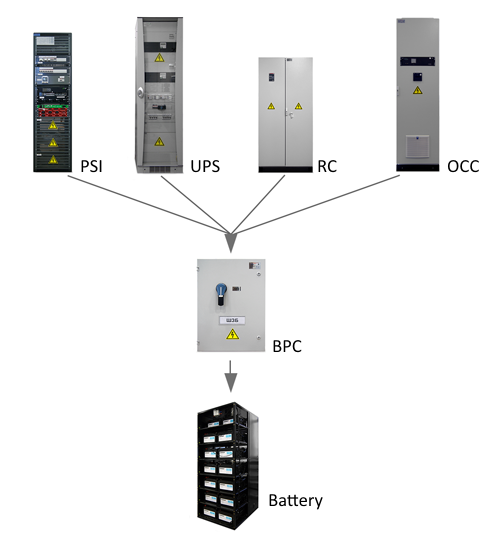

Systems of uninterruptible power supply, where batteries are used as a redundant power supply; in DC systems; in operating DC supply systems.



Certificates

Produced in accordance with TU 3430-007-61938140-2014 and complies with GOST R 51321.1-2007, GOST R 51732-2001 (IES 60439-1-92), as well as with TR CU 004/2011 “On safety of low voltage equipment” and TR CU 020/2011 “Electromagnetic compatibility of technical means”.



Basic specifications

Rated voltage range, Fixed, V

400, 500, 600

Rated current of one line, A

100, 125, 160, 200, 250, 315, 400

Number of lines in ШЗБ

From 1 to 19

Protection level according to GOST 14254-80

up to IP55

Ambient temperature:

from -15°C till +40°C (rated current value at the temperature of +40°C, for declared rated value 400A, is shown in table 1)

Relative humidity,

at the ambient temperature +25°C

no more than 80%

Air pressure

From 630 mm of mercury to 800 mm of mercury

(from 84,0 kPa to 106,7 kPa)

Dimensions, mm HxWxD*

600х800х300

Materials intensity, kg*

up to 49

* Specification value can vary depending on other parameters
