Integrated backup power supply installation IBPSI



Description

IBPSI are used to supply energy to the first power supply consumers class with a single power supply, as well as for the reception and distribution of electric energy, local, remote and automatic control of different processes, such as control of supply and exhaust ventilation systems, pumps with asynchronous motors in heat water supply points, production lines, etc., working in three-phase AC with voltage ~ 380/220 V, 50 Hz frequency.

Components

– backup power station(diesel, petrol or gas);

– uninterruptible Power Supply (UPS);

– incoming voltage stabilizer;

– actuating unit (ATS).



Certificate

Complies with the requirements TU 3414-001-61938140-2015



Functions

Uninterruptible Power Supply (UPS) is a device that allows the connected equipment to operate after the failure of centralized power supply and till turning on, for example, of the backup diesel motor. It is necessary in case of maintaining a constant power supply for the most essential consumers, such as computer systems, security systems, emergency lighting, etc. However, if the equipment can take a break in the power supply for 3-5 minutes, then you can do without the UPS.

Input voltage stabilizer is used to protect appliances from power surges and electrical line noise..

The control unit (ATS) connects all the components of the backup power system and synchronizes their work.



Application area

Health care facilities, office buildings, industrial facilities, utilities and others.



Technical specifications *

Name of regulated indicators

The value of indicators

Power transformer

Power, kV·А

From 25 to 160

(In accordance with WL)

Rated voltage, kV

on HV side

in accordance with WL

on LV side

0,38

Efficiency, % minimum

95

Insulation type

Dry

No-load current

at voltage, A, maximum

6 kV

0,4

10 кВ

0,6

Uninterruptable power supply

UPS rated power, kV·А

According to WL

Rated output voltage, kV

0,38

Output voltage frequency, Hz

50

UPS power factor, minimum

0,9

Type of output voltage

alternating

Permissible output voltage distortion with linear load, %

3

Permissible output voltage distortion with non linear load, %

5

UPS efficiency in the nominal mode,%, minimum

95

Allowable current overload, %, minimum

within 10 min

125

within 1 min

150

Type UPS output connection

3L+N+PE

Load Cross ration

3:1

Climatic version according to GOST 15150

УХЛ 4

UPS restarting interval after shutdown, with, maximum

60

Accumulator battery

Type of battery

Lead-acid, sealed

Rated capacity A • h

According to WL

The allowable number of charge-discharge cycles for the battery at a discharge depth of 40%, minimum

800

battery local action at ambient temperature up to 20 °C,%, maximum

0,1

Power station

Power, kW

According to WL

Permissible power overload within 1 hour,%, minimum

10

Mode of operation according to GOST R 53987

Tied to time operation mode at constant load

Running time, h, minimum

250

required output voltage, V

380

rated output frequency, Hz

50

Rated power factor, minimum

0,8

The degree of automation according to GOST R 53987

3

Time from receipt of a signal by the automatic start till the moment ready-to-receive
100% load, with, maximum

180

ES output, neutral mode

Five-wire, solidly earthed neutral,,

With division of PEN busbars on
РЕ and N

Fuel

Diesel or petrol
(In accordance with WL)

* Technical specifications and completing units can be changed in accordance with the technical requirements of the customer.

This information is introductory and can be changed without notice.

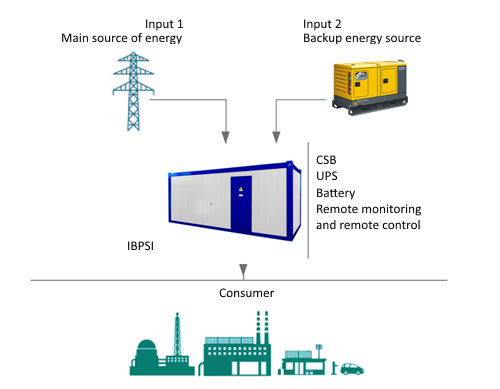

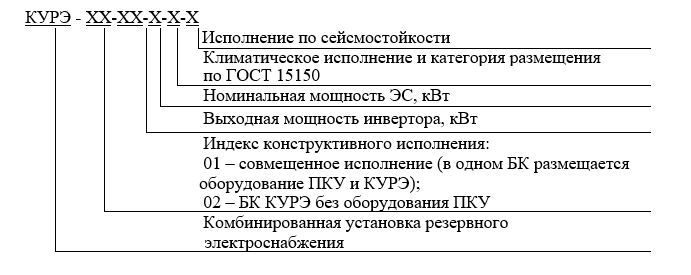

Type designation is КУРЭ.
