Filter compensating units FCU



Description.

Filter-compensating units (FCU) - is the most modern comprehensive solution to the problem of poor quality of electric energy in the networks of any object, which is expressed in an overload of transformers, increase of power losses, accelerated equipment aging, false actuation of protection devices, etc.



Application area

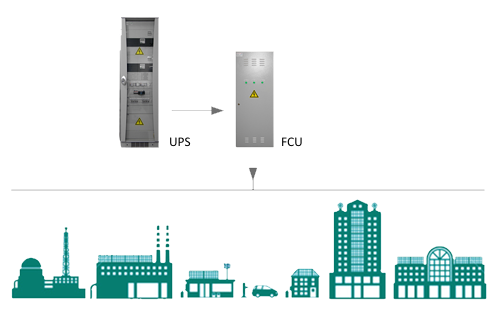

Filtering and compensation in power plants, frequency converters, UPS, data centers, industrial equipment for the microelectronics industry, as well as photovoltaic systems and wind turbines, office buildings and shopping centers.



Functions

- Harmonic filtering;

- Balancing of the phase current;

- Power factor correction.

Certificates

Complies with the requirements of regulatory documents GOST IEC 60950-1.2011, GOST R 51318.22-2006, GOST R 53362-2009, GOST R 51317.3.2-2006



Technical specifications

Rated current, A

100

Rated voltage, V:

380

Rated frequency, Hz

50

Type of current:

three phase

AC

Type of grounding system

TN-S

Types of electrical connections of functional blocks

FFF

Type of isolating in accordance with GOST 51321.1:

1

Degree of protection

IP21

No-load current, A

20±5

Wire section at input and output, mm2

35

Dimensions (HxWxD), mm

1600х600х400
